Home > 产品中心 > 保偏PM产品 > 保偏继电器式小型光开关

D1x2 保偏 继电器式小型光开关

Features
结构紧凑
切换速度快
插损低
高可靠性、高稳定性
Compliance
Telcordia GR-1221
Telcordia GR-1073
Download
Inquire Now
  • Description
  • Optical Route

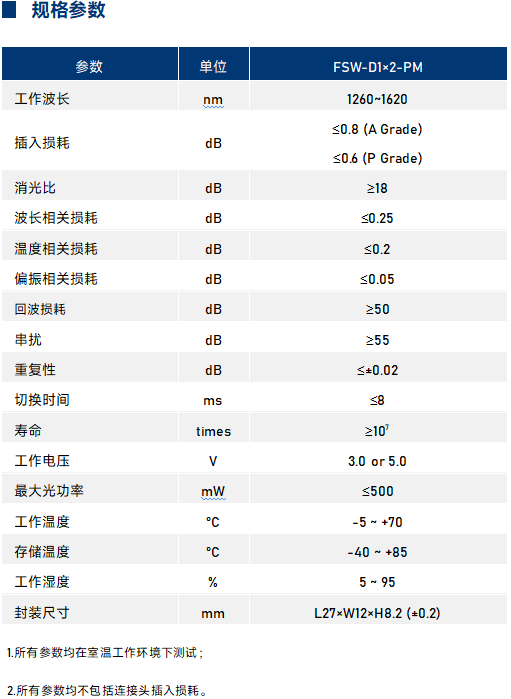

  • Specifications
  • Dimension
  • Ordering Information
  • Applications

  • D1x2

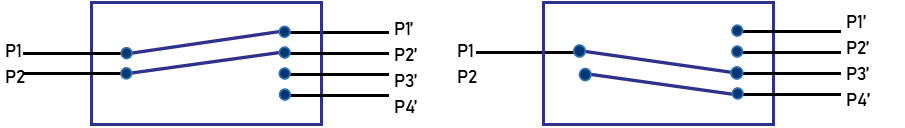

  •                                                      状态A                                                                        状态B

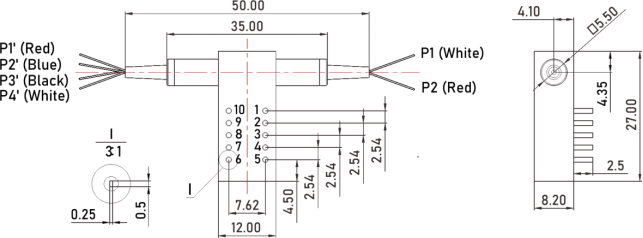

  • D1×2 PM继电器式小型光开关（L27×W12×H8.2）

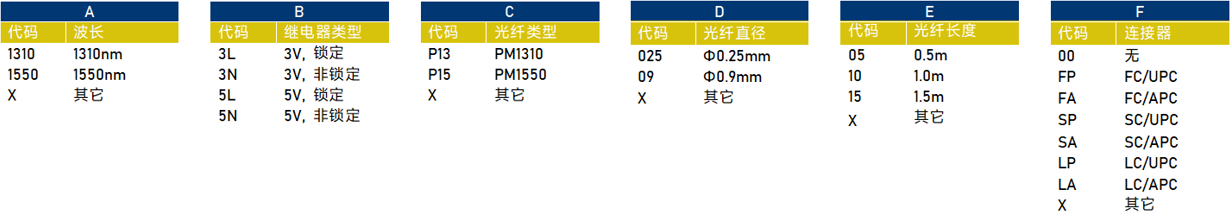

  • 订购信息：FSW D1×2-A-B-C-D-E-F

  • 无源光网络
    光保护系统
    网络监控
    仪器仪表
    • Prev: 2x2T 保偏 继电器式小型光开关 Next: D2x2 保偏 继电器式小型光开关
